High Pressure Triplex Plunger Pumps

UT Pumps’ High Pressure Triplex Plunger Pumps are precision-engineered to deliver exceptional performance across a wide range of industrial applications. Designed for continuous duty and built with precision components, these pumps ensure smooth, reliable operation even in the most demanding environments.

Robust Construction:

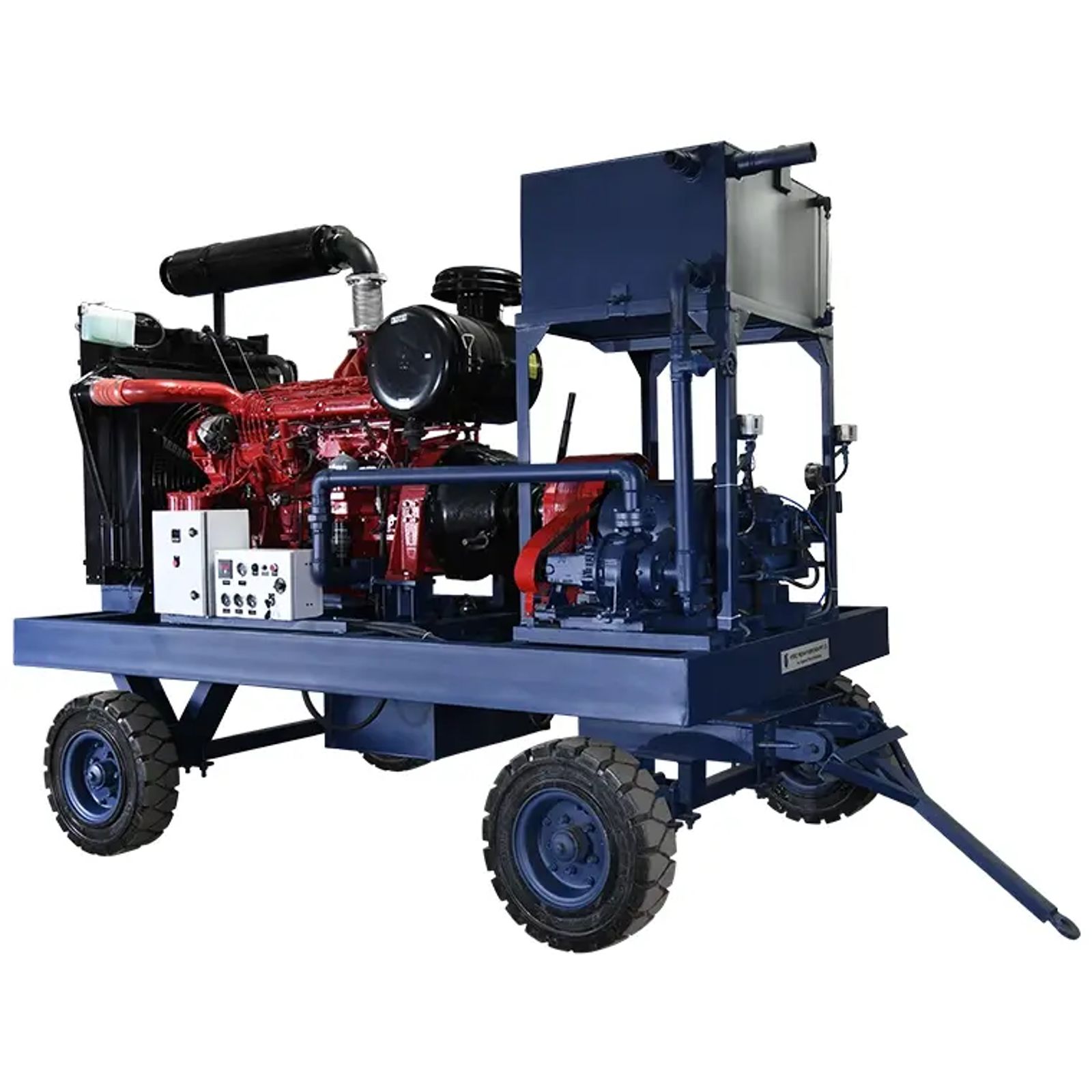

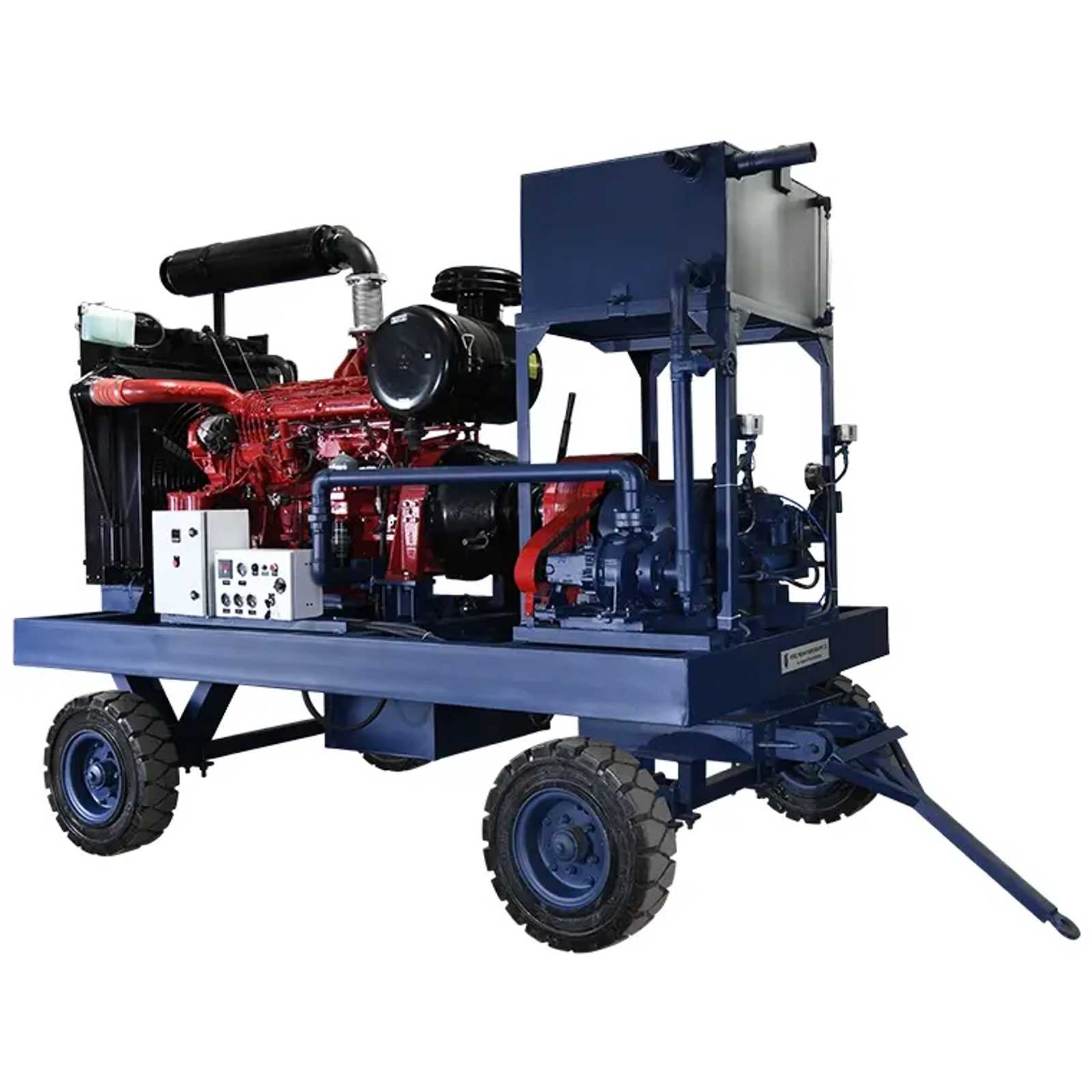

  • Drive Options Available with TEFC/Flameproof electric motors or diesel engines, with Star-Delta, DOL, Soft Starter, or VVVF drive options.

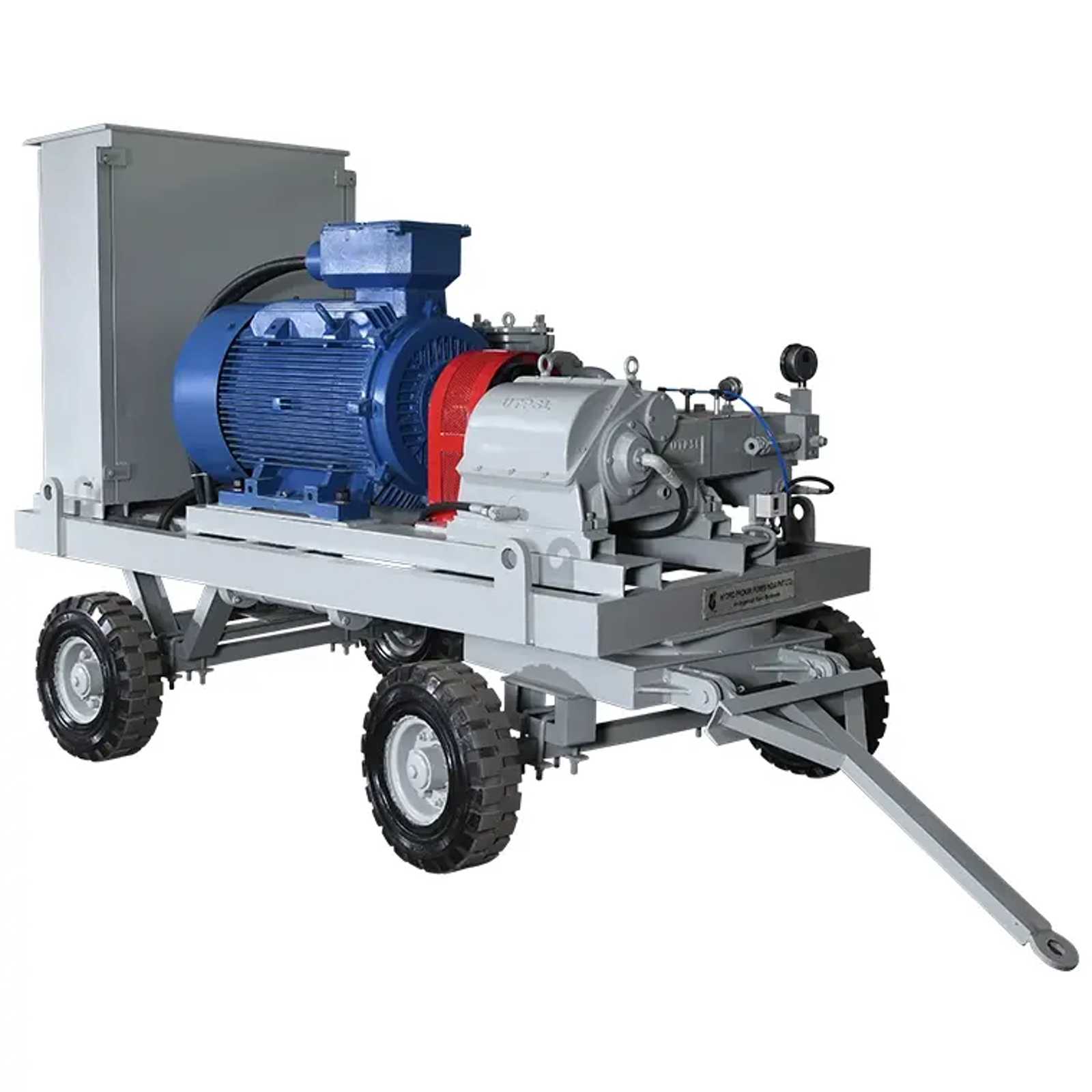

  • Mounting Compact base frame with anti-vibration pads, also available on solid or pneumatic wheel trolleys for easy mobility.

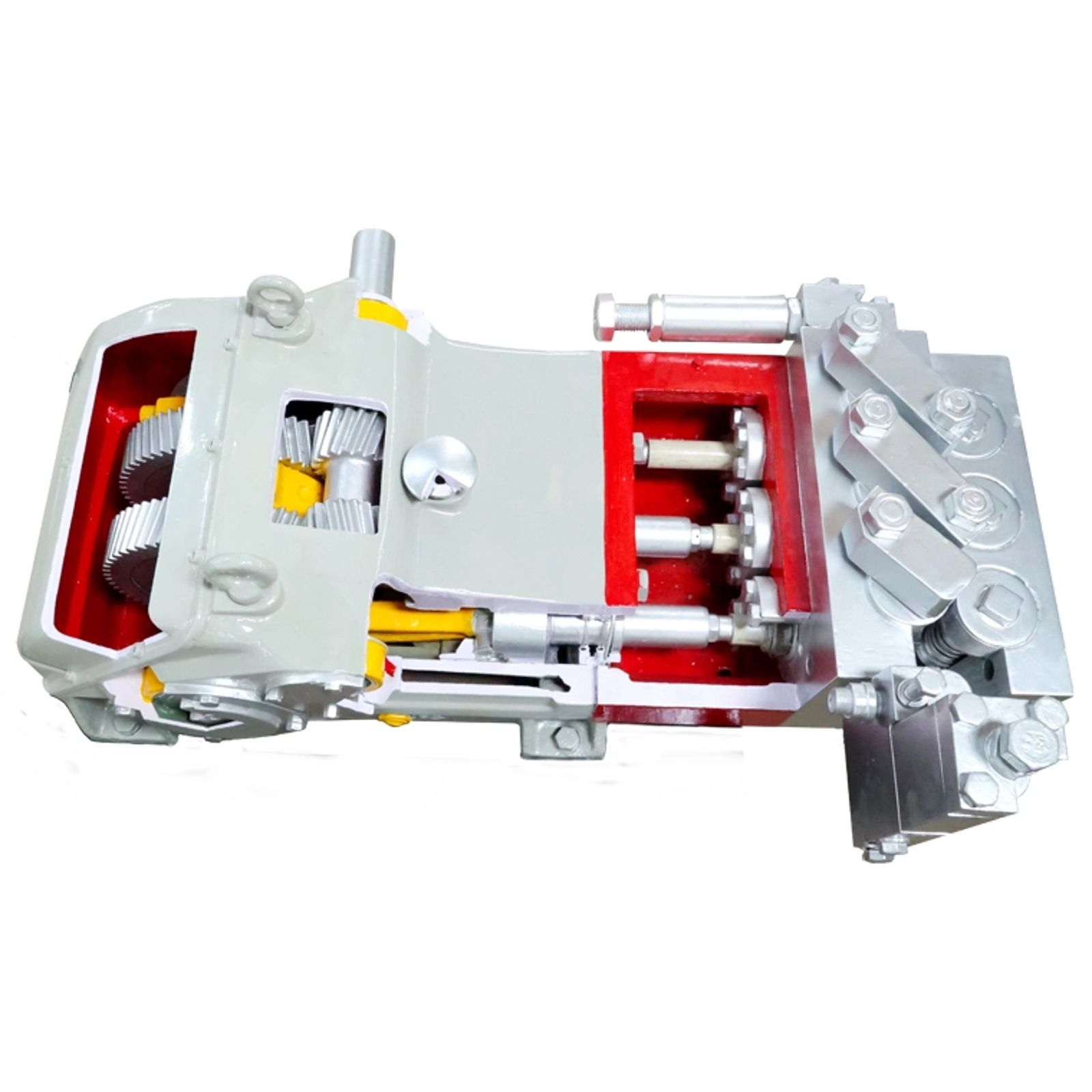

  • Pump Head Materials Forged stainless steel (SS-410/420/431/304/316), ultrasonically tested and CNC-machined for precision and safety.

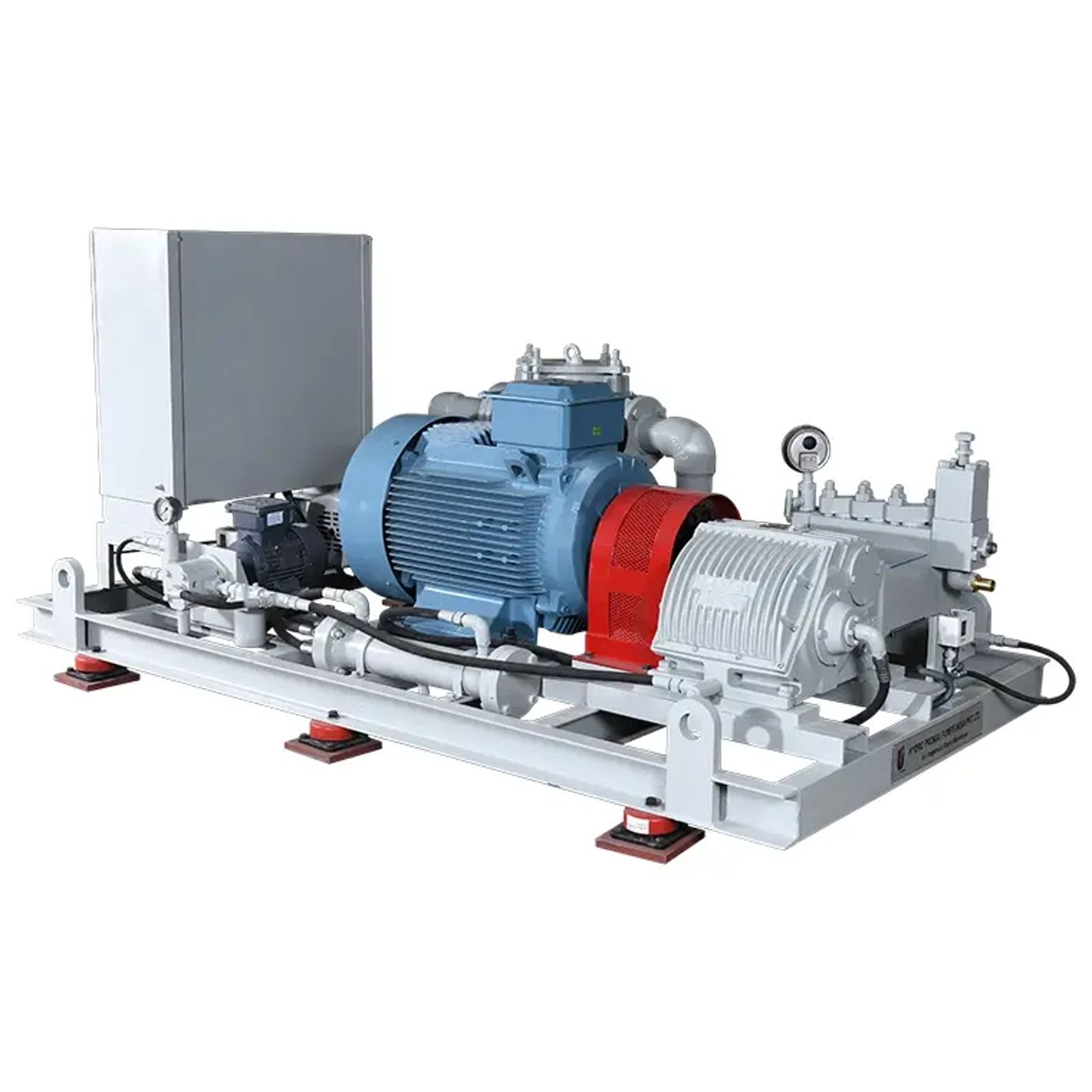

High-pressure plunger pumps, equipped with an unloader and safety valve, are powered by either an electric motor or a diesel engine. The complete pump unit—featuring a local control panel, instrumentation, and safety controls—is mounted on a vibration-free fixed base frame or a towable trolley with solid or pneumatic wheels. Customers can opt to mount an overhead water tank directly on the pump frame, enhancing convenience and space efficiency. Units can be custom-built for safe operation in hazardous zones, incorporating flameproof electrical components.

  • Cleaning of turbine blades, heat exchanger pipes and tubes, air-filters, pre-heaters, reactors, pressure vessels, silos, tanks, machined parts, sewage pipes, ship hull, ladles, etc.
  • Descaling billets, blooms, plates, spring sheets, forgings, pipes, non-ferrous metals, etc.
  • Water jetting across a wide range of industrial applications – including water injection, accumulator charging, hydro testing, concrete cutting, paint stripping, rust removal, deburring, reverse osmosis, water hydraulics, and prop support systems.

Model

Flow Rate (m³/h)

Power Input (kW)

22

30

37

45

Pressure (bar)

4518

1.5

485

665

805

940

4520

1.9

390

535

660

760

4522

2.2

330

450

555

630

4524

2.6

275

375

465

530

4526

3.1

235

320

395

450

4528

3.6

200

275

340

390

4530

4.1

175

230

285

340

4532

4.7

155

210

260

295

4536

5.9

115

155

195

235

4540

7.3

95

125

160

190

4545

9.3

75

105

125

150

4550

11.5

60

85

105

120

4555

13.9

50

70

85

100



Model

Flow Rate (m³/h)

Power Input (kW)

45

55

75

Pressure (bar)

8018

1.7

790

965

1300

8020

2.1

650

800

1065

8022

2.5

525

650

900

8024

3.1

450

555

755

8026

3.7

385

475

645

8028

4.2

335

410

555

8030

4.8

280

345

470

8032

5.4

240

300

410

8036

6.9

190

235

325

8040

8.7

150

190

255

8045

10.5

120

150

200

8050

12.9

100

120

165

8055

16.8

80

100

135



Model

Flow Rate (m³/h)

Power Input (kW)

55

75

90

110

132

Pressure (bar)

13018

2

840

1125

1340

1630

2000

13020

2.5

695

920

1100

1305

1570

13022

3.1

540

730

850

1000

1260

13024

3.6

405

560

670

770

1100

13026

4.3

385

535

645

770

910

13028

5

355

485

580

665

780

13030

5.8

305

420

505

580

680

13032

6.6

270

370

445

505

600

13036

8.3

205

285

340

400

475

13040

10.2

165

225

270

325

390

13045

12.9

130

175

215

255

305

13050

16.1

105

145

170

205

245

13055

19.5

90

120

140

170

200

13060

23.2

70

100

120

145

170



Model

Flow Rate (m³/h)

Power Input (kW)

55

75

90

110

132

Pressure (bar)

13018

2.3

760

1035

1235

1470

1750

13020

2.8

610

850

1010

1220

1430

13022

3.4

490

660

790

970

1140

13024

4.1

425

600

720

860

1000

13026

4.7

370

515

620

760

845

13028

5.5

315

445

530

655

730

13030

6.4

275

390

460

565

635

13032

7.2

240

340

410

500

560

13036

9.1

190

260

310

380

440

13040

11.3

155

205

245

300

355

13045

14.3

120

160

195

235

280

13050

17.6

100

130

155

190

225

13055

21.3

80

110

130

160

185

13060

25.4

70

95

110

135

156



Model

Flow Rate (m³/h)

Pressure (bar)

132

160

200

250

Power Input (kW)

25026

5.2

815

990

1235

1540

25028

6

700

850

1060

1315

25030

6.8

610

740

925

1145

25032

7.8

535

650

815

1010

25036

9.9

425

515

645

800

25040

12.2

345

415

520

645

25045

15.5

270

330

410

510

25050

19.1

220

265

335

415

25055

23.1

180

220

275

340

25060

27.5

155

185

230

285

25065

32.2

130

160

200

245

25070

37.4

110

135

170

210

25075

42.9

100

120

150

185

25085

55.1

75

90

115

145

25095

68.9

60

75

90

115
