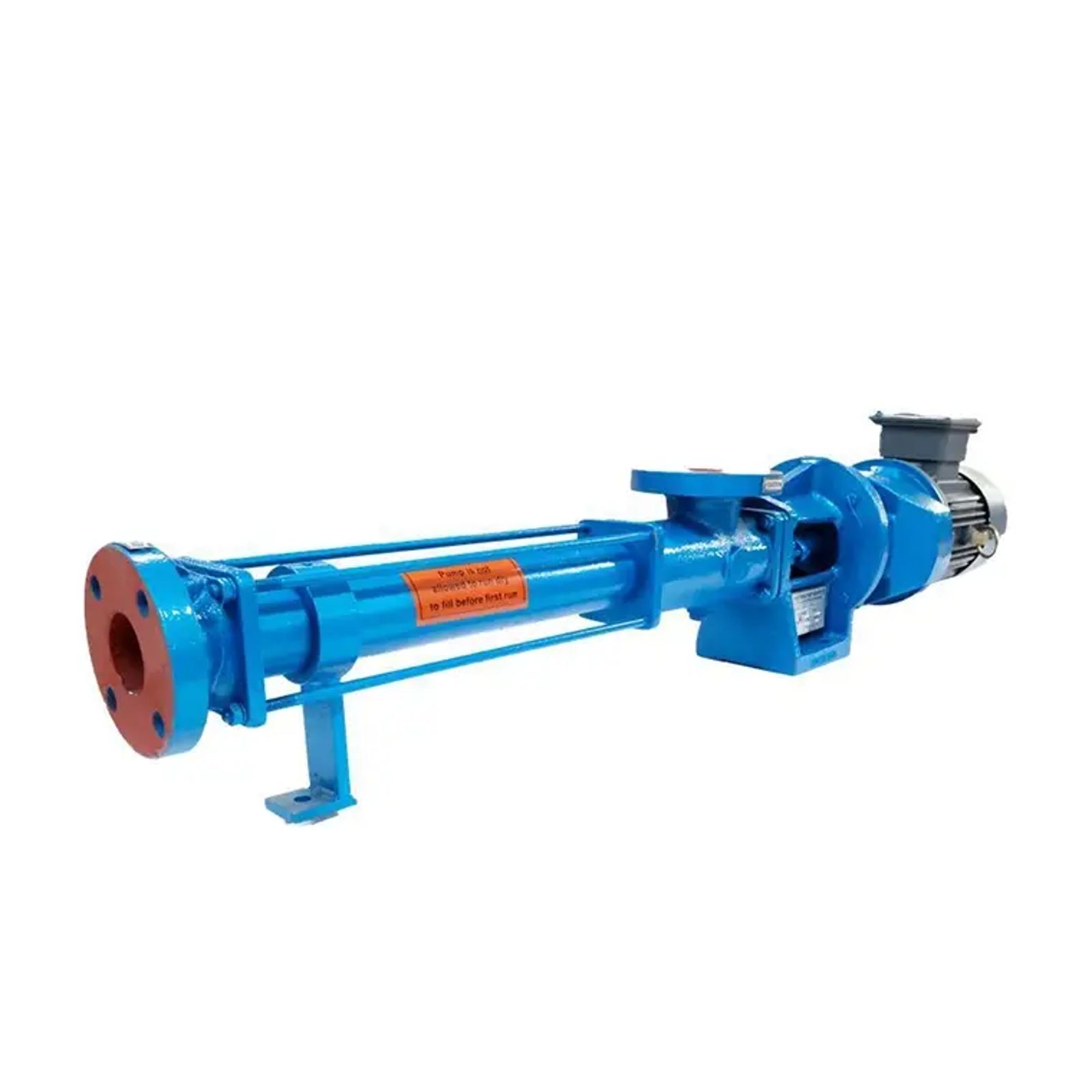

EL Series - Compact Horizontal Pumps
EL Series models are horizontally mounted compact design pumps without a bearing housing. They are suitable for handling high and low viscous, neutral or abrasive media.
The EL Series Screw Pumps are positive displacement pumps known for their ability to handle solids-laden fluids. Their robust design makes them suitable for continuous operation in harsh conditions, especially where reliability and efficiency are critical.
The EL Series features a close-coupled, compact design with no bearing housing. The pump is directly mounted to the driver, eliminating the need for a separate base plate. This results in a shorter, lighter assembly ideal for space-saving installations.
Model | Max Speed (RPM) | Capacity (m³/h) | Pressure (bar) | ||
|---|---|---|---|---|---|
I | II | IV | |||
164 | 1250 | 4 | 6 | 12 | 24 |
236 | 1000 | 9 | 6 | 12 | 24 |
375 | 630 | 13 | 6 | 12 | 24 |
600 | 560 | 18 | 6 | 12 | 24 |
1024 | 550 | 30 | 6 | 12 | 24 |
1500 | 500 | 60 | 6 | 12 | 24 |
1900 | 400 | 88 | 6 | 12 | 24 |
Industry | Application |
|---|---|
Cement | Waste water transfer, Sludge transfer, Effluents transfer |
Power | Drain oil transfer, sludge/wastewater transfer, oil-water mixture transfer |
Oil & Gas | Oil sludge, skimming, water transfer, oil-wax mixture, waste & slop oil transfer |
Steel | Waste water/ETP sludge transfer, Oily water transfer, Drain oil transfer |
Marine | Ballast pump, Bilge pump, Sludge pump |
Paper | Drain oil transfer, Water treatment |
Sugar | Sugar cane juice transfer |
Water & Wastewater Treatment | Oily sludge transfer, Primary/Secondary sludge transfer, Raw/Bio effluent transfer, Raw sewage transfer, Oil-water mixture transfer, Chemical dosing, Drainage, Untreated sewage transfer, Milk of lime suspension, Neutralizing agents, Scum transfer, Fresh/Industrial/Process water transfer, Filter-press charging |
