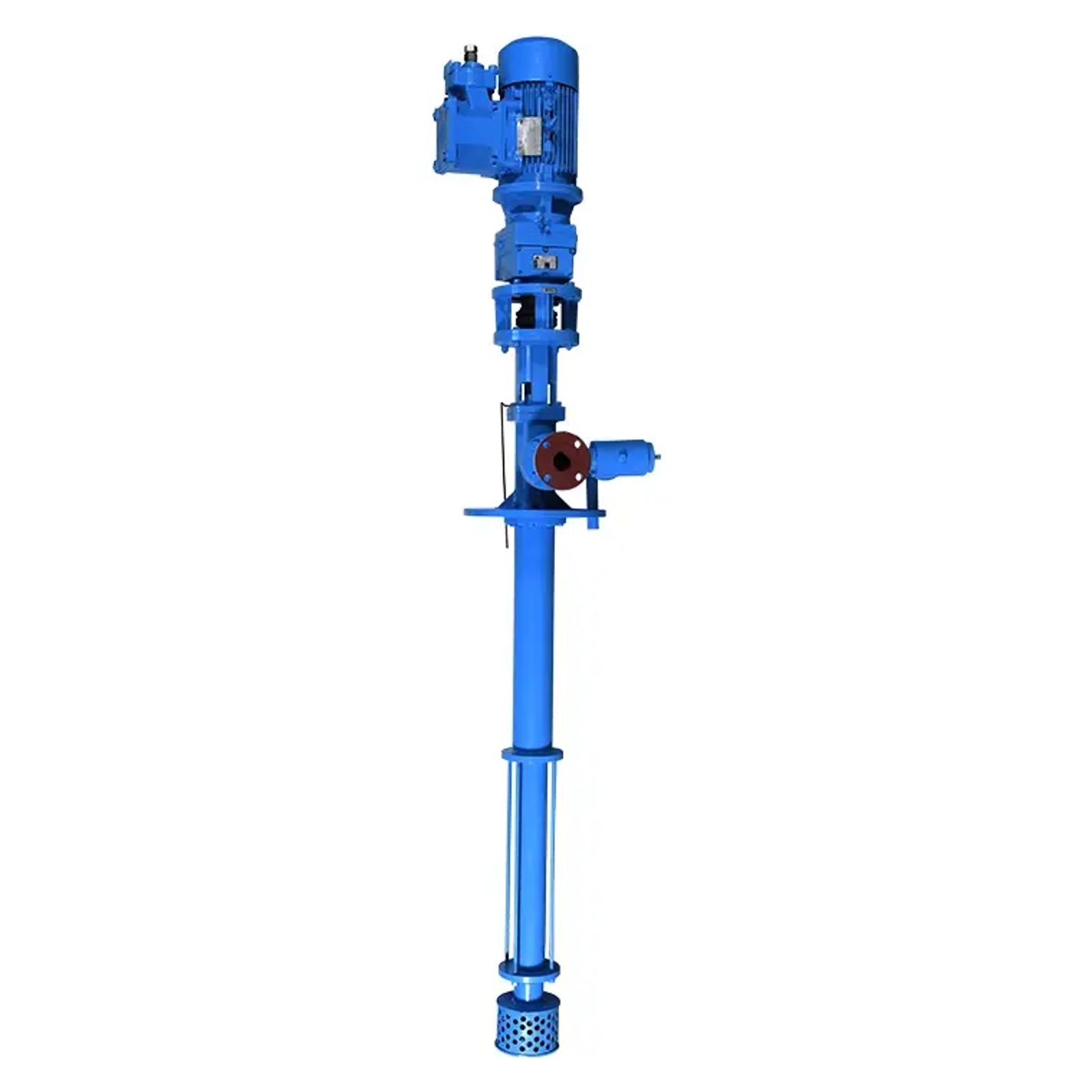

EU Series - Vertical Immersion Pumps
The EU Series models are vertical, tank top mounted single screw pumps designed to handle a wide range of fluid transfer applications. The Drive unit is directly mounted on the pump body, and the whole unit can be suspended and lowered in the container or well. Running at low speed, these pumps have vibration free operation.
EU series pumps are specially designed for emptying barrels, containers, and wells that are filled with low or highly viscous media with or without solid or fibrous components. They really shine in oil-water transfer and wastewater handling – two of the most demanding and cross-industry applications.
Model | Max Speed (RPM) | Capacity (m³/h) | Pressure (bar) | ||
|---|---|---|---|---|---|
I | II | IV | |||
164 | 600 | 2 | 6 | 12 | 24 |
236 | 600 | 5 | 6 | 12 | 24 |
375 | 400 | 8 | 6 | 12 | 24 |
600 | 400 | 13 | 6 | 12 | 24 |
1024 | 350 | 18 | 6 | 12 | 24 |
1500 | 300 | 35 | 6 | 12 | 24 |
1900 | 300 | 60 | 6 | 12 | 24 |
2650 | 200 | 75 | 6 | 12 | 24 |
Industry | Application |
|---|---|
Cement | Cement Wastewater handling |
Power | Drain oil transfer, sludge/wastewater transfer, oil-water mixture transfer |
Oil & Gas | Oil sludge, skimming, water transfer, oil-wax mixture, waste & slop oil transfer |
Steel | Steel Oil-water transfer, drain oil transfer |
Paper | Drain oil transfer |
