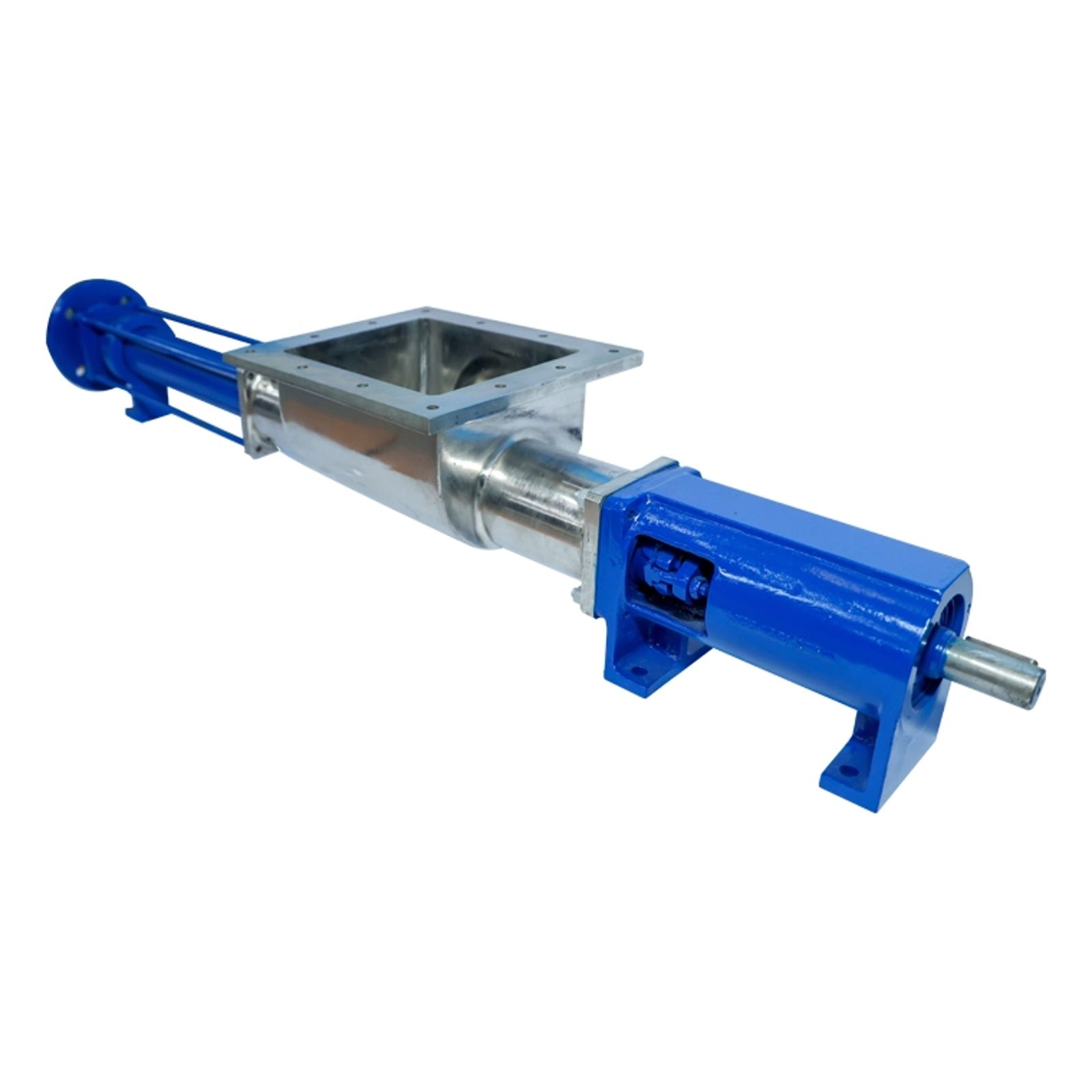

ER Series - High Viscosity Handling
Heavy-duty pumps with special auger type pump casing for positive suction. Suited for extremely high viscosity or paste-like materials.
Horizontally mounted with a special auger type pump casing, these pumps have a special conveyor shaft to transfer viscous liquid to suction chamber.
They are suitable for handling extremely viscous, pasty or hardly pumpable media. To give you an idea, they can transfer media with 60% solid matter.
These horizontal pumps incorporate a hopper-style inlet and a conveyor screw, making them ideal for transferring highly viscous, pasty, or otherwise challenging media. The design also handles media with solid content, supporting dryness levels up to 60%.
Model | Nozzle Size (mm) | Capacity (m³/Hr) | Pumping Pressure (bars) | ||
|---|---|---|---|---|---|
I | II | IV | |||
236 | 250 | 2 | 6 | 12 | 24 |
375 | 250 | 5 | 6 | 12 | 24 |
600 | 200 | 6.5 | 6 | 12 | 24 |
1024 | 200 | 10 | 6 | 12 | 24 |
1500 | 200 | 22 | 6 | 12 | 24 |
1900 | 200 | 42 | 6 | 12 | 24 |
2650 | 175 | 65 | 6 | 12 | - |
4500 | 150 | 90 | 5 | 10 | - |
Industry | Application |
|---|---|
Chemical Industry | Chemical Industry Chemical transfer, slurry transfer, adhesives |
Food Industry | Cake mix, fruit juice, jelly/jam, fresh cream, butter, minced meat, syrups, honey, curd, condensed milk, dough, soybean concentrate, tomato pulp, yeast |
Power Industry | Effluent transfer |
Oil & Gas | Oil sludge, skimming, waste transfer, effluent transfer |
Steel Industry | Highly viscous slurry transfer |
Fertilizer Industry | Slurry and sludge transfer |
Construction Industry | Wall plastering, fine aggregate mortar, sealing compounds, dispersion plaster, floor screed, interior/exterior plaster, cement/sand/slurry transfer |
Paper Industry | Pulp transfer, starch/clay slurry, alum/resin, latex glue, paste, coating solution, black liquor, titanium dioxide, carbonates, sludge, effluent |
Sugar Industry | Syrup, massecuite, lime slurry, flocculants, press mud, molasses, viscous pulp, magma transfer |
Edible Oil Industry | Edible Oil Industry Peanut butter, rendered butter, soap stock |
Pharmaceutical Industry | Bulk drug slurries, liquid soaps, emulsions, gelatin |
Water & Waste Treatment | Activated sludge, alum feed, carbon slurry, de-watered sludge/cakes, digested sludge, flocculant, grease, scum, all sludge types |
