Single Screw Pumps – ES Series

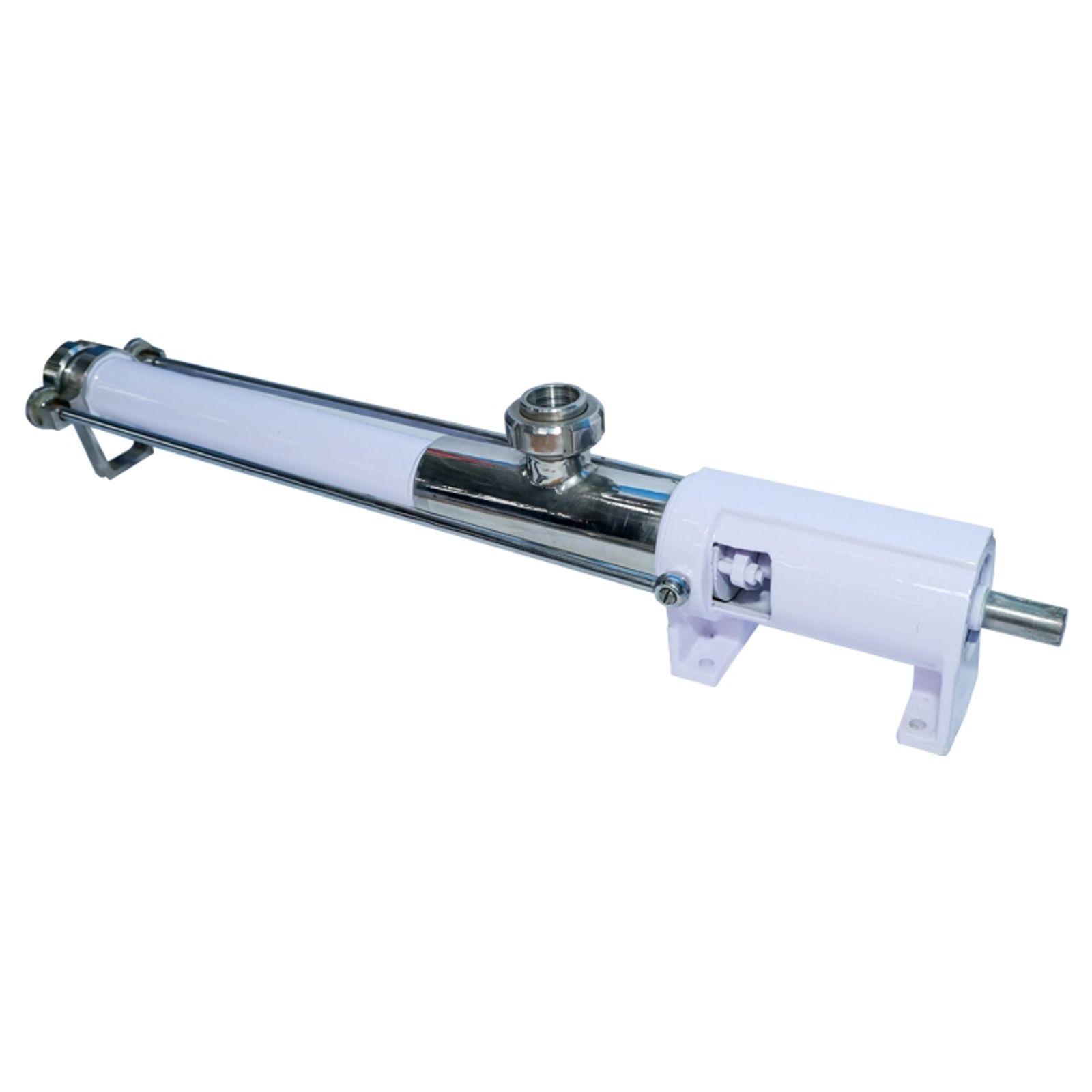

ES Series - Easy-to-Sanitize Pumps

The ES Series models come with a special casing that is easy to clean. These pumps can be disassembled effortlessly for biological sanitization and as a result are ideal for the food and beverages industry.

Available in food grade material combinations suitable for handling food products, they come with different inlet/outlet connection with dairy/food grade fittings. The fluids this series can handle are usually shear sensitive and whose composition should be maintained throughout the processes.

Crafted entirely from stainless steel, these pumps are designed for easy disassembly and reassembly, allowing thorough cleaning of every component. This, along with compatibility for Clean-In-Place (CIP) and Sterilization-In-Place (SIP) processes, makes it an ideal choice for the food, pharmaceutical, and cosmetic industries.

  • ES Model - Up to 6 bar; ideal for standard-duty applications
  • E2S Model - Up to 12 bar; suited for medium-pressure systems.
  • E4S Model - Up to 24 bar; built for high-performance, demanding operations.

Model

Max Speed (RPM)

Capacity (m³/h)

Pressure (bar)

I

II

IV

164

1000

3.4

6

12

24

236

800

7

6

12

24

375

550

11

6

12

24

600

500

18

6

12

24

1024

450

24

6

12

24

1500

400

48

6

12

24

1900

300

66

6

12

24



Industry

Application

Food Industry

Cake mix, dough, ice cream, chocolate, syrups, honey, condensed milk, fruit pulp, juice, jelly/jam, tomato pulp, fresh cream, butter, curd, minced meat, soybean concentrate, vegetable oil, yeast, etc

Sugar Industry

Raw cane or beet juice with fiber and sugar cane juice transfer.

Edible Oil Industry

Transferring cooking oil and soybean concentrates

Pharmaceuticals

Syrups, bulk drug slurries, ointments, balms, emulsions, selenium liquid, liquid soaps, and gelatin.
