High Pressure Cleaning Systems operate on the principle of high-pressure water jetting. A precision-engineered plunger pump delivers water at high pressure through specially designed nozzles. The system effectively removes tough contaminants from surfaces, with flow and pressure easily adjustable via regulator valves—allowing a single machine to handle multiple cleaning tasks.
High Pressure Cleaning Systems

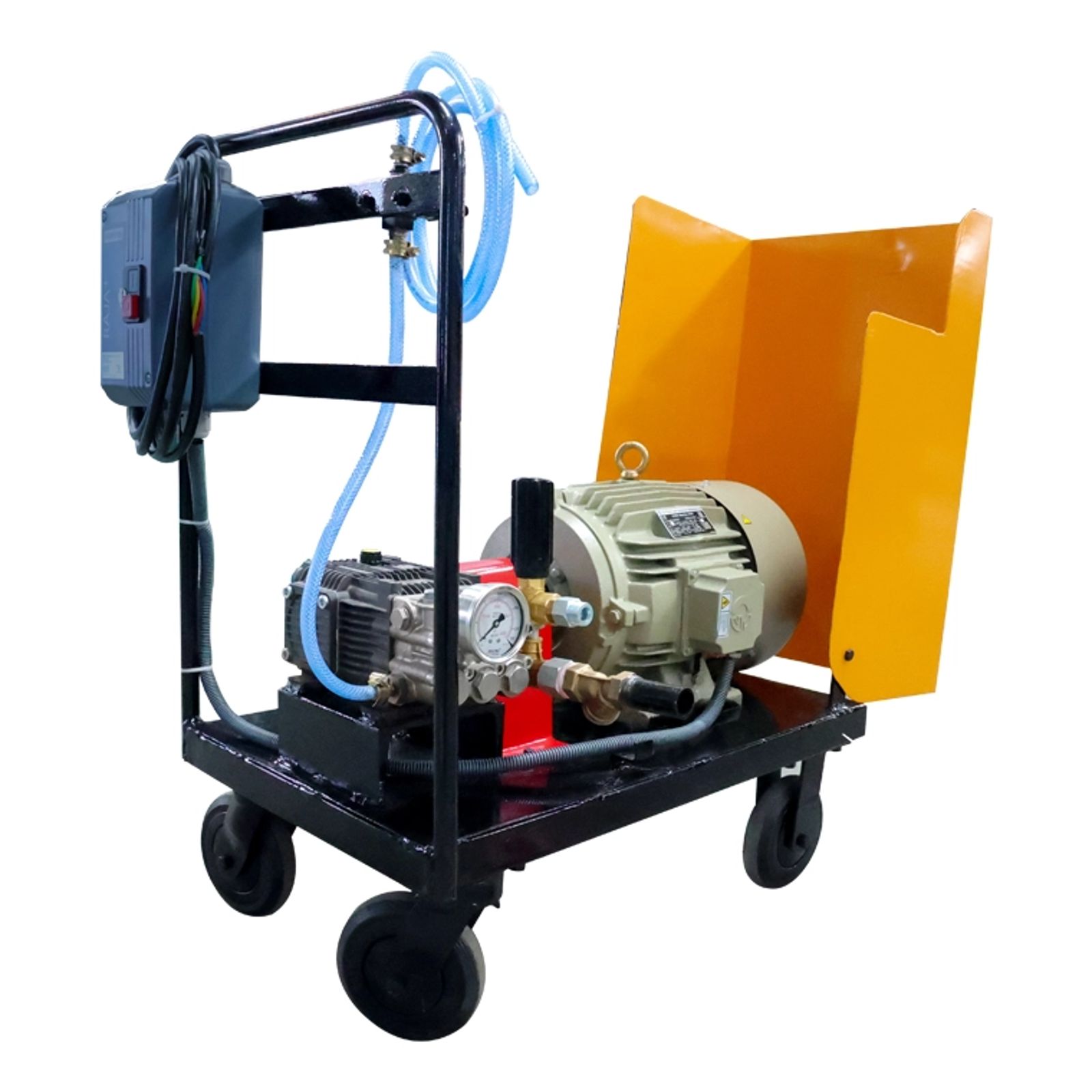

Our high-pressure cleaning systems are built around high-pressure (Up to 250 bar) plunger pumps complete with integrated drive, safety, and control systems. These compact, mobile units are engineered for easy maneuverability.
Suitable for both smooth factory floors as well as rugged industrial terrains, these cleaning systems are available in five designs.
UT Pumps’ cleaning systems are ideal for:
- Industrial equipment cleaning
- Basket/Filter/Mesh Cleaning
- Heat exchanger and boiler maintenance
- AHU/Radiators and Cooling Towers Cleaning
- Surface preparation and paint removal
- Tube and pipe descaling
- Food processing and hygiene-critical environments
| Application | Industries Where Commonly Used |
|---|---|
Equipment Cleaning | Cement, Chemical, Food, Power, Oil & Gas, Steel, Fertilizer, Marine, Construction, Paper, Sugar, Edible Oil, Pharmaceuticals |
| Basket/Filter Cleaning | Cement, Power, Oil & Gas, Steel, Paper, Sugar |
| Cleaning of Mesh & Filters | Cement, Power, Oil & Gas, Steel, Paper, Sugar |
| Cleaning of AHU/Radiators | Cement, Power, Oil & Gas, Steel, Paper, Sugar |
| Cleaning of Cooling Tower | Cement, Power, Oil & Gas, Steel, Paper, Sugar |
| Workshop/Equipment Cleaning | Cement, Power, Oil & Gas, Steel, Paper, Sugar |
| Hydraulic Testing (Boiler/Vessels/Pipes) | Power, Oil & Gas, Steel, Paper, Sugar, Fertilizer |
- Two-Way Dosing System for flexible cleaning options
- Compact & Mobile Design for easy transport and use in tight spaces
- Hot Water & Steam Jet Cleaning capabilities
- Horizontal Heat Exchanger to prevent fire hazards
- Solid Ceramic Plungers for extended durability
- Co-axial Lance System for efficient operation
- Low Pump Speed for reduced wear and longer life
- Easy Maintenance with accessible components
- Built-in Safety Valve for secure operation
- Adjustable Flow Control for diverse cleaning needs
- Multi-Directional Nozzles for comprehensive surface coverage
- Chemical Dosing Capability for heavy-duty cleaning applications
| Operating Pressure | 200 bar |
| Water Flow Rate | 1.26 m³/h |
| Water Temperature | Ambient to 150°C |
| Electric Load | 8 kW |
| Drive Motor | 7.5 kW |
| Fuel Consumption | 8 L/h |
| Detergent Tank Capacity | 2 × 20 L |
| Fuel Tank Capacity | 45 L |
| Dimensions | 1500 × 900 × 980 mm |
| Weight | 350 kg |
| Operating Pressure | 50-150 bar |
| Water Flow Rate | 0.88 - 1.76 m3/h |
| Water Temperature | Ambient to 150°C |
| Electric Load | 8 kW |
| Drive Motor | 7.5 kW |
| Fuel Consumption | 11 L/h |
| Detergent Tank Capacity | 2 × 20 L |
| Fuel Tank Capacity | 45 L |
| Dimensions | 1500 × 900 × 980 mm |
| Weight | 375 kg |
| Operating Pressure | 50 - 150 bar |
| Water Flow Rate | 0.88 - 1.76 m3/h |
| Water Temperature | Ambient |
| Electric Load | 7.5 kW |
| Drive Motor | 7.5 kW |
| Detergent Tank Capacity | 2 × 20 L |
| Fuel Tank Capacity | 2 × 20 L |
| Dimensions | 1350 × 900 × 980 mm |
| Weight | 205 kg |
| Operating Pressure | 100 - 500 bar |
| Water Flow Rate | 1.32 m3/h |
| Water Temperature | Ambient |
| Electric Load | 2.2 kW |
| Drive Motor | 2.2 kW |
| Weight | 500 kg |
| Operating Pressure | 50 - 200 bar |
| Water Flow Rate | 0.4 - 0.9 m³/h |
| Water Temperature | Ambient |
| Electric Load | 5.5 kW |
| Drive Motor | 5.5 kW |
| Dimensions | 500 × 740 × 800 mm |
| Weight | 90 kg |
| Operating Pressure | 50 - 100 bar |
| Water Flow Rate | 0.4 - 0.48 m3/h |
| Water Temperature | Ambient |
| Electric Load | 1.8 kW |
| Drive Motor | 1.8 kW |
| Dimensions | 710 × 450 × 850 mm |
| Weight | 70 kg |
